ZQX

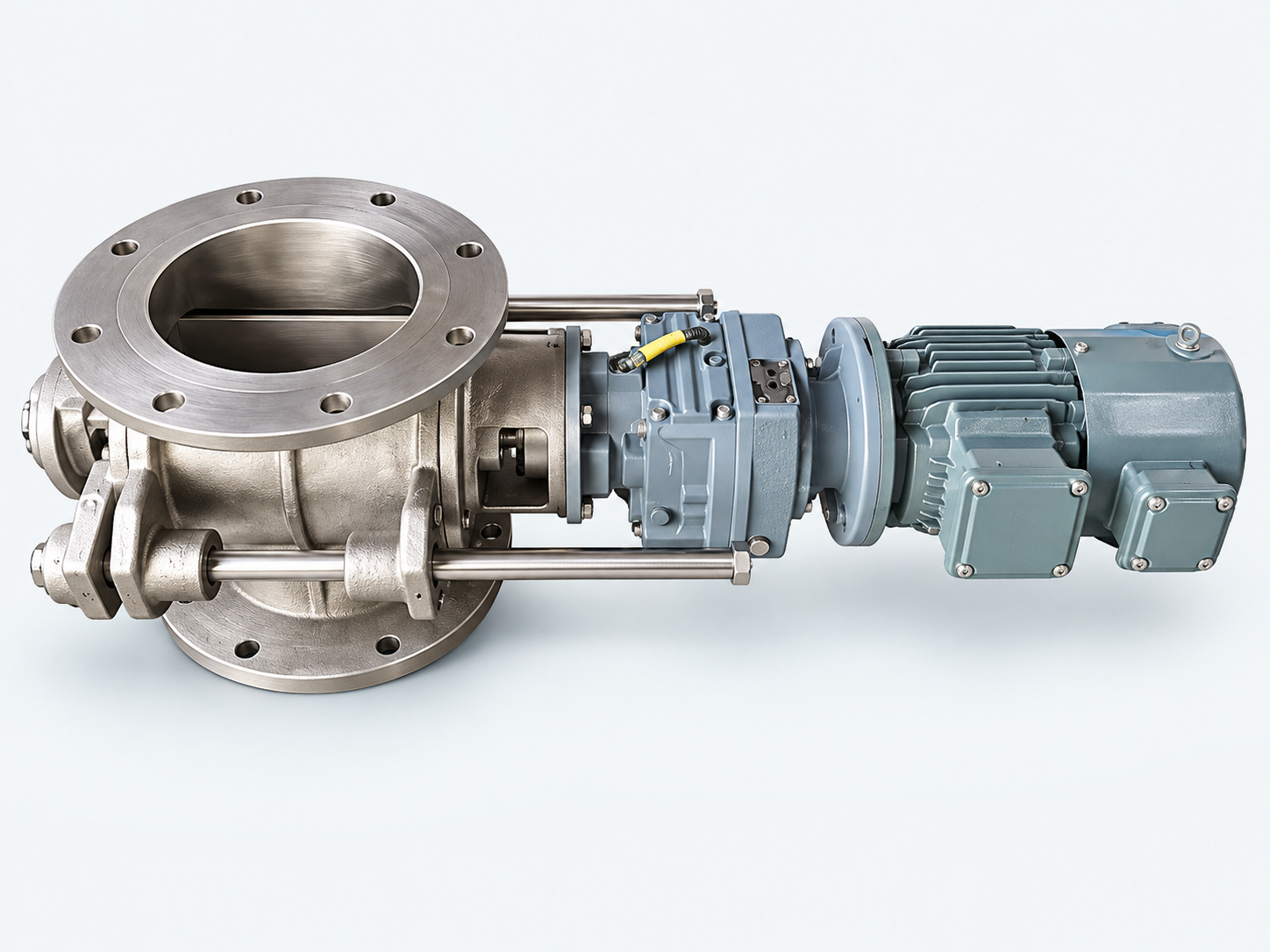

ZQX Rotary Valve

Rotary valve variant configured for finer powder and dust-collection duty.

Cast ironCarbon steelStainless steel

Overview

ZQX is configured for finer powder handling, commonly positioned under cyclones and dust-collection hoppers where a consistent air seal matters as much as metering accuracy.

Specifications

Drive: Motor + reducer
Function: Fine-powder rotary discharge
Customization: OEM/ODM, non-standard sizing
Minimum order: 1 unit
Material options: Cast iron, carbon steel, stainless steel

Configuration details

product name

ZQX Rotary Valve

model family

ZQX

catalogue specifications

{
  "label": "ZQX model, volume, dimensions, speed and motor-power table",
  "raw_page_text": "型号-口径\ntype\n每转容积\nL/Rev\n外形及安装联接尺寸Stucural dimensions(mm) \n转速\nr/min\n电机功率\n（KW）\nA\nB\nC\nE\nF\nH\nP\nS \nM\nN\nn-Φd\nZGB-200\n4\n200 260 300 280 660 500 200 170 640 680\n8-Φ14\n1-24\n0.75-\nZGB-250\n8\n250 310 350 330 720 530 250 200 660 720\n8-Φ14\n1-24\n1.1-\nZGB-300\n12\n300 360 400 360 750 580 300 260 720 760\n12-Φ14\n1-24\n1.5-\nZGB-350\n20\n350 410 460 390 780 630 350 300 780 800\n12-Φ14\n1-24\n2.2-\nZGB-400\n30\n400 470 520 420 810 680 400 350 820 880\n12-Φ18\n1-24\n2.2-\nZGB-500\n45\n500 570 620 560 850 800 500 400 900 980\n12-Φ18\n1-24\n3.0-\n型号\ntype\n每转容积\nL/Rev\n外形及安装联接尺寸  Stucural dimensions(mm)\n转速\nr/min\n电机功率\n（KW）\nH\nΦA\nΦB\nΦC\nE\nF \nM\nN\nn-Φd\nZQX-100\n2L\n280 100 108 220 240 260\n8-Φ18\n1-50\n0.2-\nZQX-150\n3L\n320 150 240 285 280 300 630 560\n8-Φ22\n1-50\n0.4-\nZQX-200\n8L\n370 200 295 340 300 320 680 620\n8-Φ22\n1-50\n0.55-\nZQX-250\n16L\n430 250 350 395 325 345 780 680\n12-Φ22\n10-24\n0.75-\nZQX-300\n25L\n490 300 400 445 350 370 830 730\n12-Φ22\n10-24\n1.1-"
}

models available

Many models; refer to the selection catalogue.

customization

Custom size, material, colour and process are supported.

sample evidence

Photo and video evidence can be provided instead of a physical sample.

technical documents

Technical data sheets or inspection reports are available.

industries

Grain, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, dust collection and new energy (primarily lithium battery).

oem odm

OEM / ODM is supported.

performance advantages

Strong air sealing; anti-jam structure for complex materials; multiple materials and operating conditions; non-standard customization; durable and low-maintenance; convenient installation and maintenance.

moq

1 unit

sample shipping

Samples can be shipped.

sample lead time

Normally 40 working days.

production lead time

Normally 40 working days after order.

progress updates

Production progress updates can be provided.

quality control

A quality-control process is used.

third party inspection

Third-party inspection is supported.

inspection report

Inspection or outgoing inspection reports are available.
