ZGC

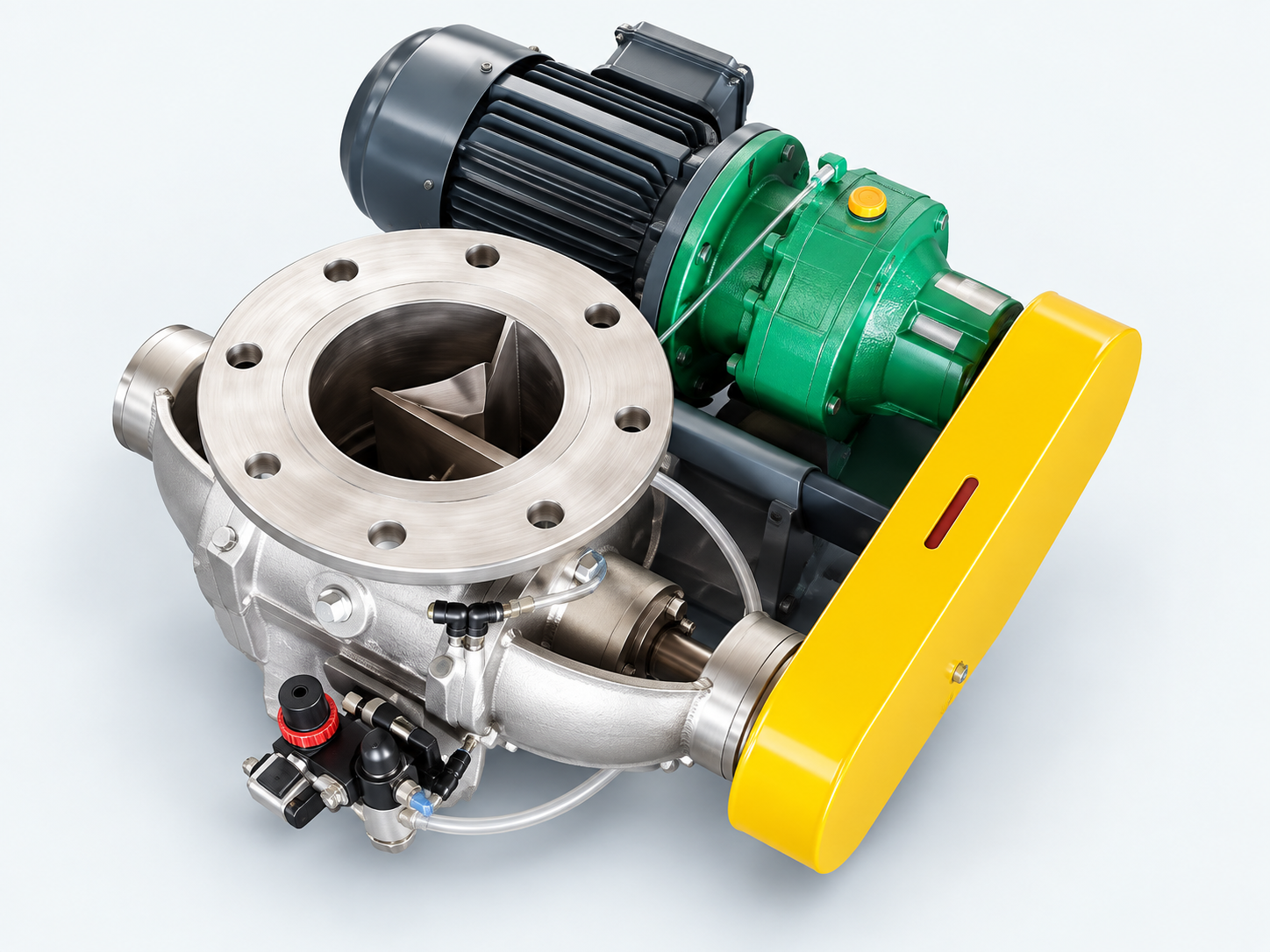

ZGC Rotary Valve

Rotary valve variant configured for higher-temperature drying-line duty.

Cast ironCarbon steelStainless steel

Overview

ZGC is positioned for drying-line installations, where housing seals and rotor clearances are set for the thermal conditions typical of a drying process.

Specifications

Drive: Motor + reducer
Function: Drying-line rotary discharge
Customization: OEM/ODM, non-standard sizing
Minimum order: 1 unit
Material options: Cast iron, carbon steel, stainless steel

Configuration details

product name

ZGC Rotary Valve

model family

ZGC

catalogue specifications

{
  "label": "ZGC model, volume, dimensions, speed and motor-power table",
  "raw_page_text": "型号-口径\ntype\n每转容积\nL/Rev\n外形及安装联接尺寸 Stucural dimensions(mm)\n转速\nr/min\n电机功率\n（KW）\nA1*B1\nA2*B3\nC\nD\nE\nF\nM\nN\nH\nn-Φd\nZGP-200\n6\n180*150\n280*250\n25\n20\n220\n270\n620\n590\n370\n8-Φ11\n10-50\n0.75-\nZGP-250\n12\n220*175\n320*280\n40\n30\n250\n300\n680\n640\n430\n10-Φ11\n10-50\n1.1-\nZGP-320\n25\n280*200\n400*320\n60\n40\n290\n350\n720\n680\n490\n12-Φ13\n10-32\n1.5-\nZGP-400\n40\n370*260\n480*360\n70\n50\n330\n390\n780\n730\n550\n12-Φ13\n10-32\n1.5-\nZGP-480\n60\n450*300\n560*410\n80\n50\n380\n440\n840\n780\n600\n16-Φ18\n10-24\n2.2-\nZGP-550\n90\n500*320\n620*430\n90\n50\n420\n490\n900\n830\n660\n16-Φ18\n10-24\n2.2-\nZGP-600\n120\n550*350\n670*470\n90\n50\n440\n510 1000 900\n720\n20-Φ18\n10-24\n3-\n型号-口径\ntype\n每转容积\nL/Rev\n外形及安装联接尺寸 Stucural dimensions(mm)\n转速\nr/min\n电机功率\n（KW）\nΦA\nΦB\nΦC\nE\nF\nM\nN\nH\nn-Φd\nZGC-150\n3L\n150\n240\n285\n240\n580\n580\n600\n320\n8-Φ22\n1-24\n0.75-\nZGC-200\n6L\n200\n295\n340\n270\n620\n620\n650\n370\n8-Φ22\n1-24\n0.75-\nZGC-250\n12L\n250\n350\n395\n300\n680\n680\n700\n430\n12-Φ22\n1-24\n1.5-\nZGC-300\n20L\n300\n400\n445\n330\n690\n720\n740\n490\n12-Φ22\n1-24\n1.5-\nZGC-350\n30L\n350\n460\n505\n360\n730\n780\n770\n550\n16-Φ22\n1-24\n2.2-\nZGC-400\n45L\n400\n515\n565\n390\n770\n840\n840\n600\n16-Φ24\n1-24\n2.2-"
}

models available

Many models; refer to the selection catalogue.

customization

Custom size, material, colour and process are supported.

sample evidence

Photo and video evidence can be provided instead of a physical sample.

technical documents

Technical data sheets or inspection reports are available.

industries

Grain, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, dust collection and new energy (primarily lithium battery).

oem odm

OEM / ODM is supported.

performance advantages

Strong air sealing; anti-jam structure for complex materials; multiple materials and operating conditions; non-standard customization; durable and low-maintenance; convenient installation and maintenance.

moq

1 unit

sample shipping

Samples can be shipped.

sample lead time

Normally 40 working days.

production lead time

Normally 40 working days after order.

progress updates

Production progress updates can be provided.

quality control

A quality-control process is used.

third party inspection

Third-party inspection is supported.

inspection report

Inspection or outgoing inspection reports are available.
