Electric Crushing Valve

Motor-driven crushing valve that breaks up agglomerated or lump material inline before discharge.

Cast ironCarbon steelStainless steel

Overview

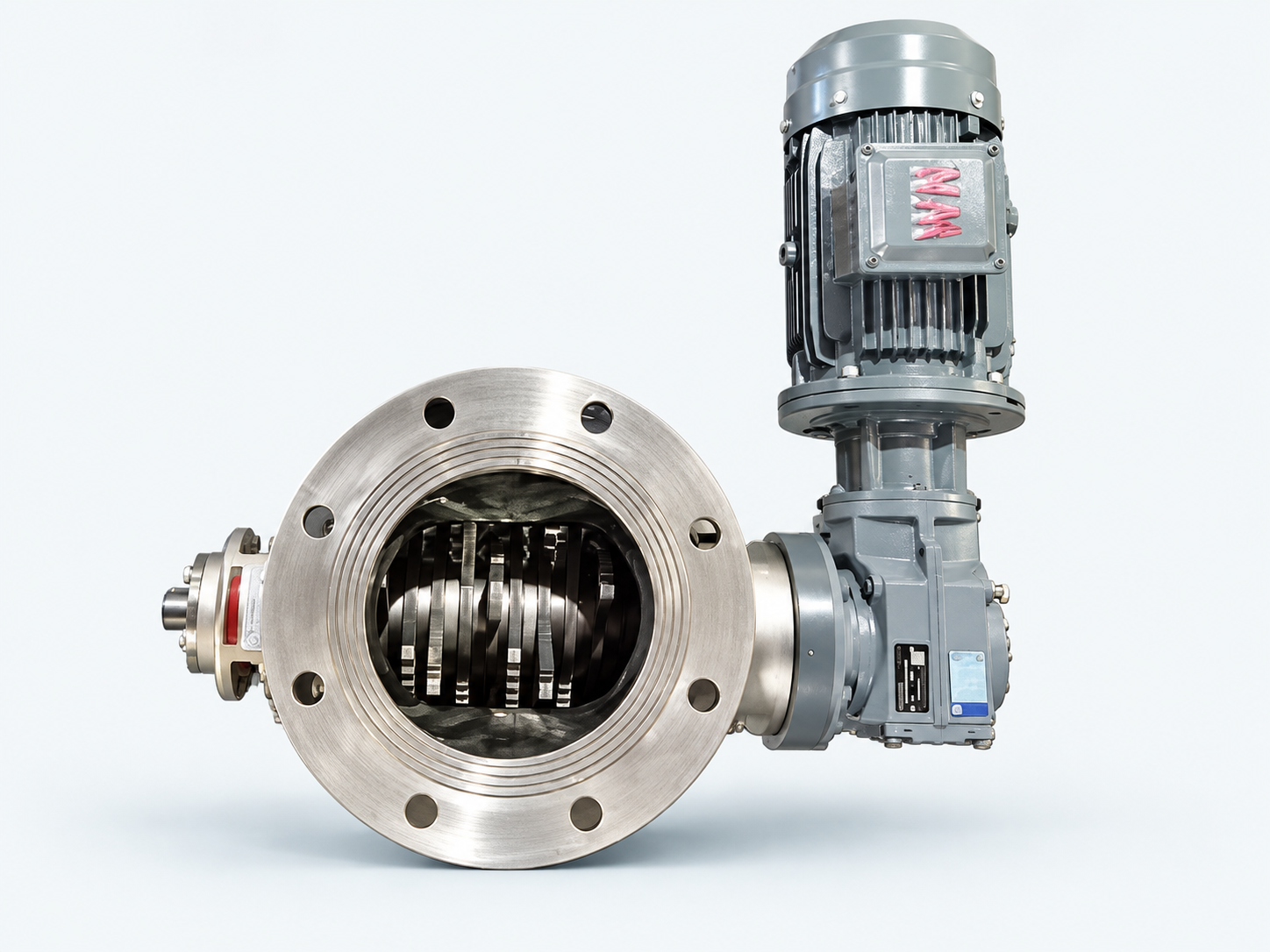

The electric crushing valve uses a motor-driven rotor with crushing blades to break up agglomerated, caked or lump material as it passes through the flange, protecting downstream conveying equipment. It is typically installed ahead of a rotary valve or screw conveyor and shares the same cast iron, carbon steel or stainless steel material options.

Specifications

Drive: Motor-driven crushing rotor
Function: Inline crushing of lump / agglomerated material
Customization: OEM/ODM, non-standard flange sizing
Minimum order: 1 unit
Material options: Cast iron, carbon steel, stainless steel

Configuration details

product name

Electric Crushing Valve

model family

Electric

catalogue specifications

{
  "label": "Electric crushing valve function, principle, components, adjustable parameters and advantages",
  "raw_page_text": "电动破碎阀\n内部结构\n螺旋输送机\n螺旋输送机是一种利用电机带动螺旋回转，推移物料以实现输送目的的机械。它能水平、\n倾斜或垂直输送，具有结构简单、横截面积小、密封性好、操作方便、维修容易、便于封闭运输等\n优点。螺旋输送机在输送形式上分为有轴螺旋输送机和无轴螺旋输送机两种，在外型上分为U\n型螺旋输送机和管式螺旋输送机。有轴螺旋输送机适用于无粘性的干粉物料和小颗粒物料.（\n例如：水泥、粉煤灰、石灰、粮等）而无轴螺旋输送机适合输送机由粘性的和易缠绕的物料。\n（例\n如：污泥、生物质、垃圾等）螺旋输送机的工作原理是旋转的螺旋叶片将物料推移而进行螺旋输\n送机输送，使物料不与螺旋输送机叶片一起旋转的力是物料自身重量和螺旋输送机机壳对物\n料的摩擦阻力。螺旋输送机旋转轴上焊的螺旋叶片，叶片的面型根据输送物料的不同有实体面\n型、带式面型、叶片面型等型式。螺旋输送机的螺旋轴在物料运动方向的终端有止推轴承以随\n物料给螺旋的轴向反力，在机长较长时，应加中间吊挂轴承。\n内部结构\n电动破碎阀打散装置是一种工业设备，用于破碎和打散固体物料。它通常由电机驱动，通\n过旋转的刀片对物料进行破碎和打散。这种装置广泛应用于各种工业领域，用于将大块物料破\n碎成小块，以便于后续处理或运输。\n电动破碎阀打散装置的工作原理是利用高速旋转的刀片对物料进行冲击和剪切，使其破\n碎和打散。同时，通过调整刀片的数量、旋转速度和物料进料速度等参数，可以控制破碎的程度\n和产量。\n该装置通常由电机、减速器、破碎机构和筛网等部分组成。其中，破碎机构是核心部分，由\n旋转的刀片和过滤筛网。在破碎过程中，物料通过进料口进入破碎室，受到高速旋转的刀片的\n冲击和剪切作用，破碎后通过出料口排出。\n电动破碎阀打散装置具有高效、节能、易于操作和维护等特点。它可以实现连续作业，破碎\n效率高，对于不同硬度的物料也能够进行破碎。此外，该装置结构紧凑，占用空间小，便于安装\n和移动。"
}

models available

Many models; refer to the selection catalogue.

customization

Custom size, material, colour and process are supported.

sample evidence

Photo and video evidence can be provided instead of a physical sample.

technical documents

Technical data sheets or inspection reports are available.

industries

Grain, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, dust collection and new energy (primarily lithium battery).

oem odm

OEM / ODM is supported.

performance advantages

Strong air sealing; anti-jam structure for complex materials; multiple materials and operating conditions; non-standard customization; durable and low-maintenance; convenient installation and maintenance.

moq

1 unit

sample shipping

Samples can be shipped.

sample lead time

Normally 40 working days.

production lead time

Normally 40 working days after order.

progress updates

Production progress updates can be provided.

quality control

A quality-control process is used.

third party inspection

Third-party inspection is supported.

inspection report

Inspection or outgoing inspection reports are available.
