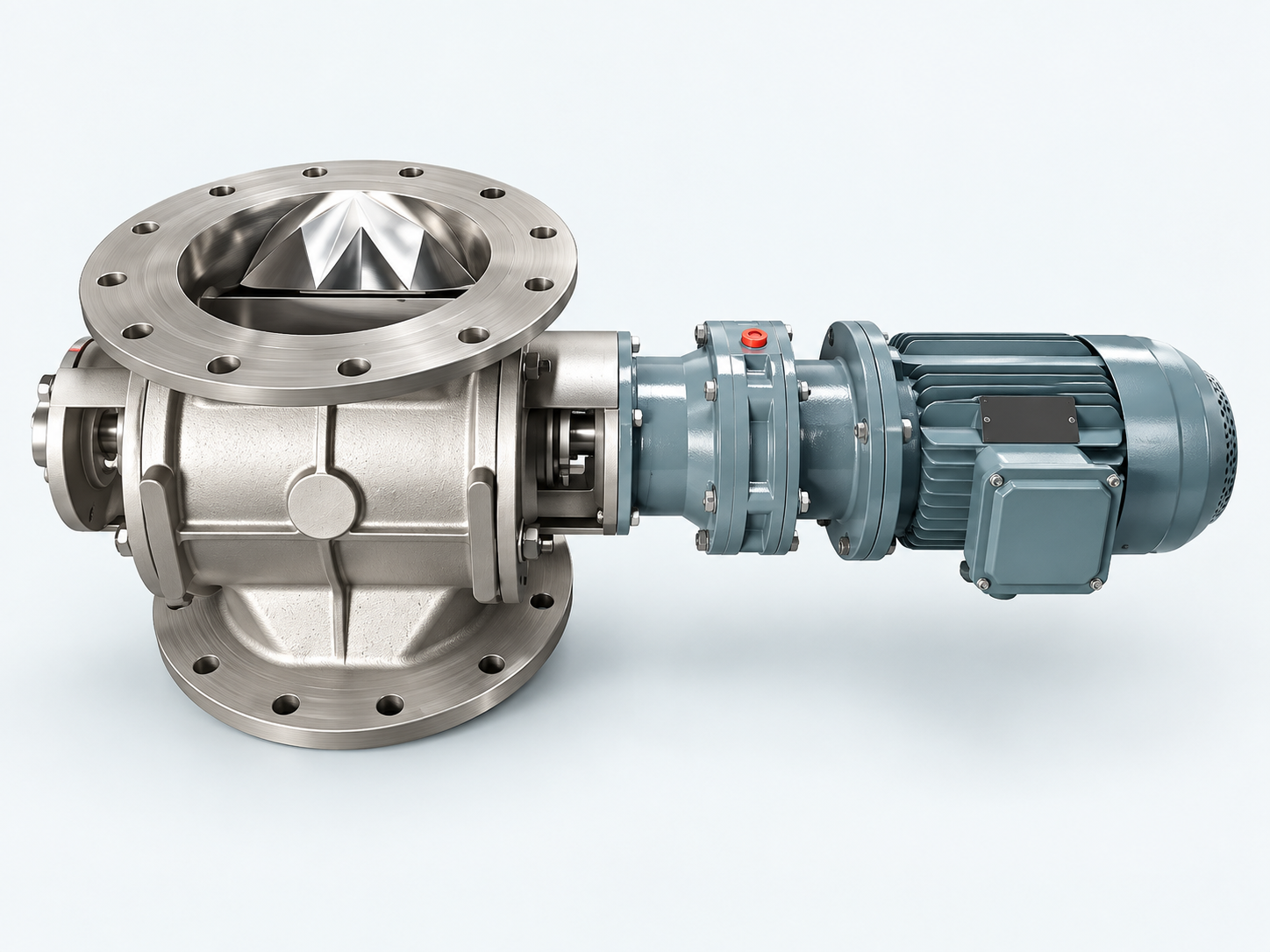

BZGFWK Rotary Valve

Reinforced multi-station rotary valve configuration for higher-duty distribution points.

Cast ironCarbon steelStainless steel

Overview

BZGFWK combines the reinforced housing approach of the BZGFWF line with a multi-station outlet layout, for installations needing both durability and discharge distribution.

Specifications

Drive: Multiple motor + reducer stations
Function: Reinforced multi-outlet rotary discharge
Customization: OEM/ODM, non-standard outlet count
Minimum order: 1 unit
Material options: Cast iron, carbon steel, stainless steel

Configuration details

product name

BZGFWK Quick-Clean Rotary Valve

model family

BZGFWK

catalogue specifications

{
  "label": "BZGFWK model, volume, dimensions, speed and motor-power table",
  "raw_page_text": "型号\ntype\n外形及安装联接尺寸 Stucural dimensions(mm)\n转速\nr/min\n电机功率\n（KW）\nΦA\nΦB\nΦC\nΦX\nΦY\nΦZ\nH\nE\nF\nP\nS\nM\nN\nn-Φd\n每转容积\nL/Rev\nZFS-150\n4L\n150 240 285\n50\n80\n100 340 230 520 220 170 550 550\n8-Φ22\n24\n0.75\nZFS-200\n8L\n200 295 340\n80\n110 130 390 255 570 260 190 600 580\n8-Φ22\n24\n1.1\nZFS-250\n16L\n250 350 395 100 130 150 450 275 600 300 230 680 630\n12-Φ22\n24\n1.1\nZFS-300\n25L\n300 400 445 125 155 180 500 300 630 340 270 730 670\n12-Φ22\n24\nZFS-350\n40L\n350 460 505 150 180 210 560 325 660 390 330 780 720\n16-Φ22\n24\n2.2\nZFS-400\n60L\n400 515 565 175 210 240 630 350 700 440 380 850 780\n16-Φ24\n24\nZFS-500\n110L\n500 620 670 200 240 270 740 400 750 500 480 950 850\n20-Φ24\n24\n4\n3\n3\n型号\ntype\n每转容积\nL/Rev\n外形及安装联接尺寸 Stucural dimensions(mm)\n转速\nr/min\n电机功率\n（KW）\nΦA\nΦB\nΦC\nE\nF\nM\nN\nH\nn-Φd\nBZGFWK-150\n4L\n150 240 285 210 550\n580\n540 320\n8-Φ22\n1-50\n0.75-\nBZGFWK-200\n8L\n200 295 340 240 590\n620\n590 370\n8-Φ22\n10-50\n0.75-\nBZGFWK-250\n16L\n250 350 395 270 630\n680\n640 430\n12-Φ22\n10-50\n1.5-\nBZGFWK-300\n25L\n300 400 445 300 660\n720\n680 490\n12-Φ22\n10-32\n1.5-\nBZGFWK-350\n40L\n350 460 505 330 700\n780\n730 550\n16-Φ22\n10-32\n2.2-\nBZGFWK-400\n60L\n400 515 565 360 740\n840\n780 600\n16-Φ24\n10-24\n2.2-\nBZGFWK-450\n80L\n450 565 615 400 770\n900\n830 660\n20-Φ24\n10-24\n2.2-\nBZGFWK-500\n110L\n500 620 670 430 800\n1000 900 720\n20-Φ24\n10-24\n3-"
}

models available

Many models; refer to the selection catalogue.

customization

Custom size, material, colour and process are supported.

sample evidence

Photo and video evidence can be provided instead of a physical sample.

technical documents

Technical data sheets or inspection reports are available.

industries

Grain, food, feed, chemical, petrochemical, pharmaceutical, drying, environmental protection, dust collection and new energy (primarily lithium battery).

oem odm

OEM / ODM is supported.

performance advantages

Strong air sealing; anti-jam structure for complex materials; multiple materials and operating conditions; non-standard customization; durable and low-maintenance; convenient installation and maintenance.

moq

1 unit

sample shipping

Samples can be shipped.

sample lead time

Normally 40 working days.

production lead time

Normally 40 working days after order.

progress updates

Production progress updates can be provided.

quality control

A quality-control process is used.

third party inspection

Third-party inspection is supported.

inspection report

Inspection or outgoing inspection reports are available.
